Description

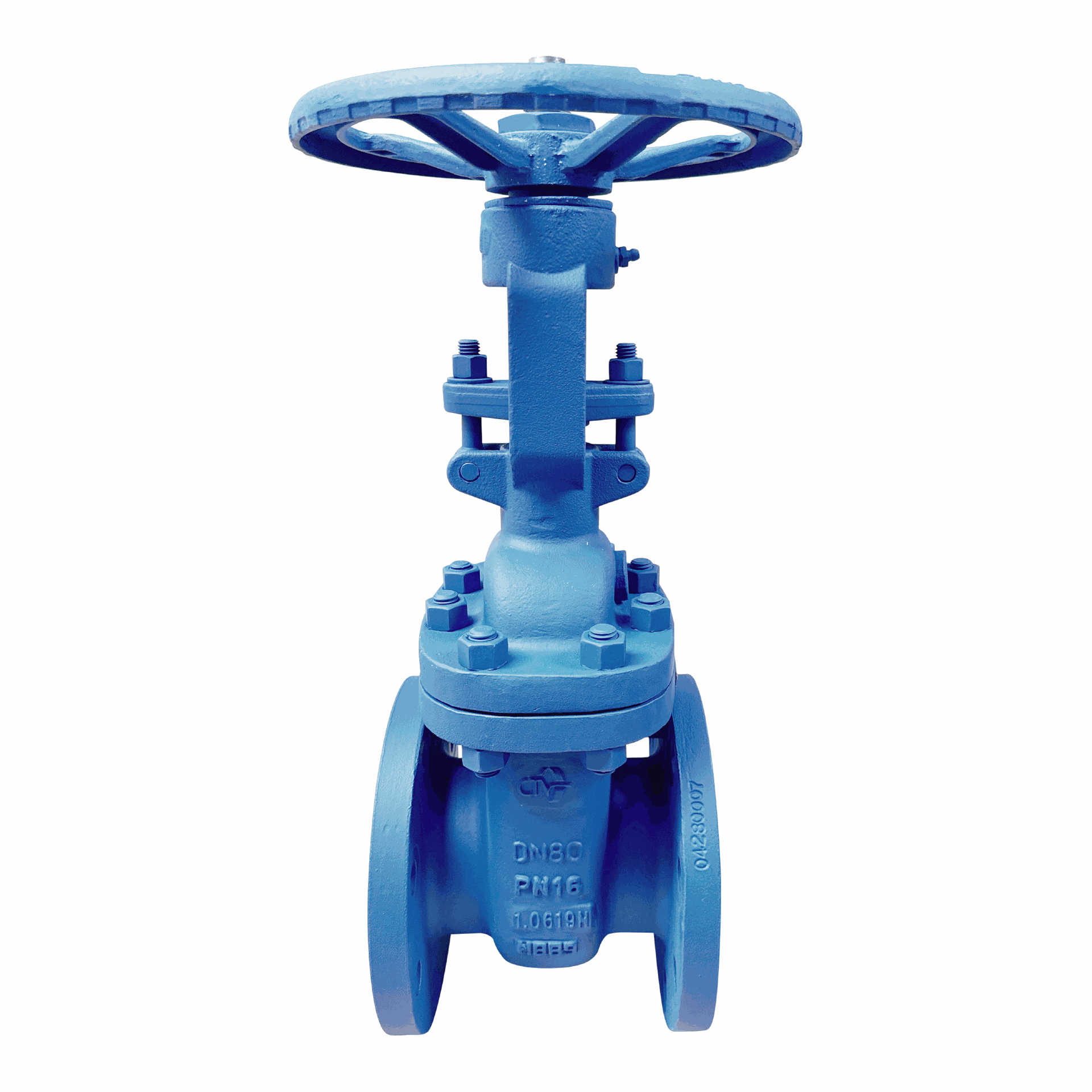

Type 03: Series 14-50-800-PN10-16 WCB-Cast Steel

In Cast steel DIN/EN-1.0619N (GP240GH - ASTM A216 WCB)

DN50 – DN800 PN16, PN25

Standards:

• Design & Manufacture conform to EN1984
• Face to Face dimension conform to DIN 3202-F4
• Flange dimension conform to EN1092-1/B1
• Test & inspection conform to EN12266-1/2
• Pressure and temperature rating conform to ASME B16.34



Product properties:

• Suitable Temperature: -10 ~ 400°C
• Suitable Media: Water, Oil, Gas


For detailed technical information, please refer to the product datasheet

Datasheet

Company Certifica​​te​​s      Product Certific​​ates​

(2D/3D) Technical Drawings

For nearly all our products, we provide 2D and 3D technical drawings in STP, DWG, and PDF formats. Below is a selection of our most requested products.

Not all drawings are available on our website. Can't find the model you're looking for? Contact us, and we’ll ensure you receive the correct drawing via email as quickly as possible!
